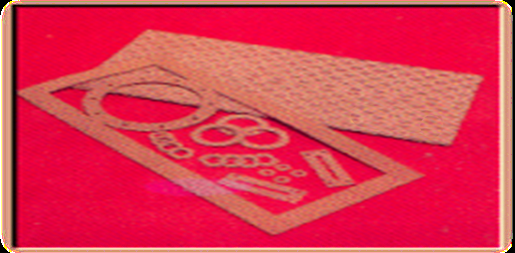

TRANSFORMER RUBBER CORK SHEET RC70C / RC70C SUPER
Balajicork Grade BRC – 7 (RC70C) is high quality product specially made
with clean virgin low density Cork granule blended with Nitrile /
Neoprene rubber which provides excellent oil & heat resistance and
extensively used in Distribution & Power transformer excellent oil
& ozone resistance properties are expected form the gasket
material. Where leakage can take 50% of Transformer life and cost of gasket is less then 0.25% of Transformer cost.
Elasticity is particularly important when gaskets are exposed to
varying pressure and temperature over long periods of time. Rubber this
elasticity for long periods of time under extreme temperature and
liquid immersion conditions.
Natural compressibility of cork is combined with the mechanical
strength of Rubber to give an outstanding product i.e. Rubberised which
can be applied in those fields where plain cork sheets have certain
limitations with respect to its properties. Rubberised Cork good
tensile strength and a greater wear & tear resistance. However, 5
to 7 different grades of a Balajicork RUBBERISED CORK is manufactured,
depending upon Hardness. Tensile strength & Resistance to Oil (as
it may be required in different fields), still a spe exercised to
produce a Uniform. World – class Quality as per international standards.
Extreme care is imparted in the manufacture of Balajicork Rubberised
Cork sheets during every stage of manufacturing to guard to the
finished sheet; rigid manufacturing processes are set up & highly
trained quality control constantly cheeks production conform
specifications.
Balajicork has unique production equipment which produces blocks. These
blocks offer valuable reductions & greater yields for my comes in
following sizes : 2000 x 1000, 1000 x 1000, 915 x 915, 915 x 615, the
sheets can be splitted from thickness since 1.5mm to.

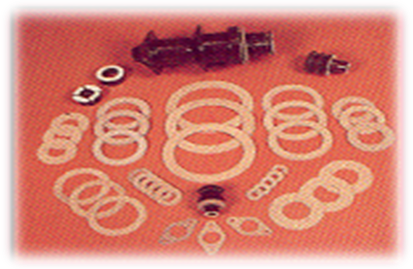

TRANSFORMER RUBBERISED CORK WASHERS
A
number of general purpose sealing washers for bushings are offered to
the electrical industry. These washers are made for manufactured
Synthetic / Nitrile rubber and rubber bonded cork compounds having good
oil resistance and dielectric properties various sections, to the
IS,3347 specifications.

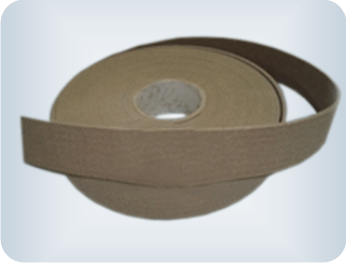

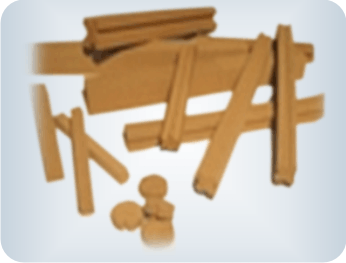

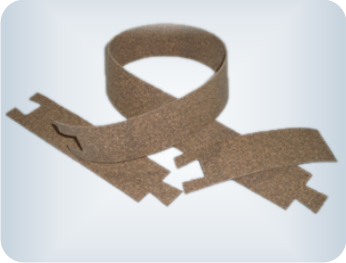

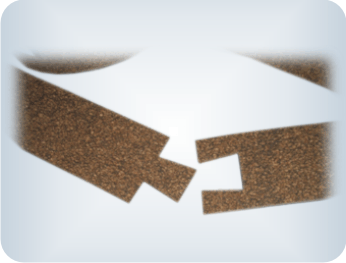

RUBBERISED CORK STIRPS
As a result and feed back received form Transformer Industry , we at
Balajicork have specially developed Rubberised cork strips specifically
manufactured with Nitrile / Neoprene rubber and rubber bonded cork
compounds having good oil resistance and dielectric properties and
conform to various sections, of the IS,4253 Part II specifications.
These strips are available in width ranging from 30mm to 200mm and
thickness from 3mm to 15mm. Along with strips Balajicork offers angles
with the aim of minimizing joints and avoid leakage.
RUBBERISED CORK TRANSFORMER KITS
Since
the design of the transformer varies from manufacturer to manufacturer
we offer R. C. kits containing all washers of Rubbercork from 5KVA upto 400 MVA. These
are manufactured from our BRC70 (RC70C) grade material and are designed
to suit individual customer’s The advantage of the readymade kit are:-
a. Material wastage is not there (as you get readymade washers from us)
b. Time is saved (as you would not waste the time in cutting the sheets into the washers and so on)
c. Convenience to your worker in using these washers (as the kit
contains all requisite R. C. Components to
assemble a single transformer).
A
good Gasket Cost less then 0.25% of the cost of the Transformer but bad
gasket may consume 50% life of a Transformer. Therefore always use
Balajicork Gasket for Distribution & Power Transformer.
|
